Quick Detail

Material Construction and Configuration :
1. Pump Casing and Cover : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316 316L; Duplex SS CD4-MCu ; Bronze
2. Pump Impeller : Cast Iron GG25 ; Ductile Cast Iron GGG40 ; Cast Steel ; SS304 316316L; Duplex SS CD4-MCu ; Bronze
3. Shaft : Carbon steel AISI1045 ; Chrome Steel 40Cr ; SS AISI420 ; SS AISI4140 ; SS316Ti ; SS DIN1.4571 ; Duplex SS UNS S32205
4. Seal Type : Mechanical seal , Gland Packing.
5. Bearing Type : Ball Rolling
6. Shaft Sleeve : Cast Steel ; SS304 316316L; Duplex SS CD4-MCu ;
7. Flange Standard : ISO , DIN , ANSI .
Technical Advantage :

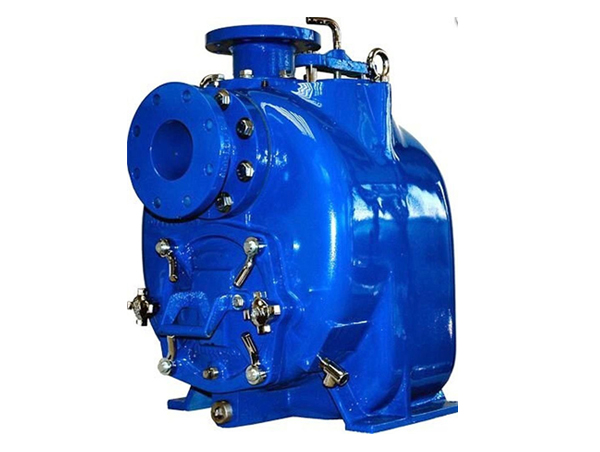

1. T series self-priming pumps are designed for economical & trouble-free operation in handling solids-laden liquids and slurries.
2. T Series pumps are designed for economical & trouble-free operation in handling solids-laden liquids and slurries. Pumps feature a large volute design which allows them to re-prime automatically in a completely open system without the need of suction or discharge check valves. And this is workable with the pump only partially filled with liquid and completely dry suction line.
3. Pumps will be able to handle up to 75mm spherical solids, depending on pump models. In case that pump shaft or bearings need service or repair, the entire rotating assembly can be removed without disturbing pump casing or pipelines.
4. Rotating assembly is sealed with an O-Ring, allowing for external adjustments of clearance.
